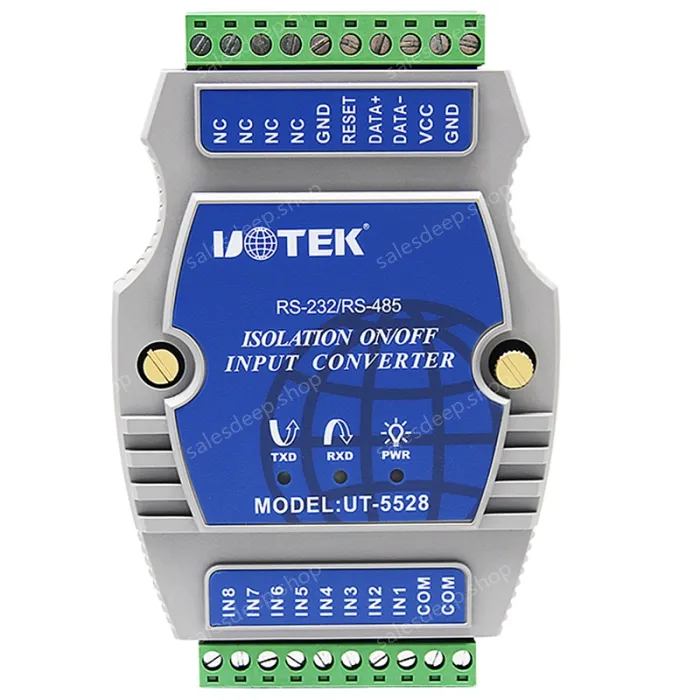

      UOTEK UT-5528 Digital 8-channel optical isolated dry contact I/O input module

      ★ ★ ★ ★ ★ 4.9 2339 Reviews

      Model: UT-5528

      Order No: UT-5528

      SKU: 10000143207701

      Category: YT

      Brand: YT

      Condition: New Sealed Under Guarantee

      Size: 120.00mm, 80.00mm, 25.00mm; Diam:0.00cm

      Weight: 0.00kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      UOTEK UT-5528 Digital 8-channel optical isolated dry contact I/O input module

      The UT-5528 opto-isolated data parallel input I/O controller is an 8-bit, 8-channel isolated switching input. All switching inputs are simply COM and IN1 shorted, or COM and IN1-8 can be connected.

      • Operating power supply: 9-30VDC/350mA
      • Isolation voltage: 2500V rms
      • Electrical interface：Ten bit terminal block
      • Dimension：120mm×80mm×25mm
      • Operating temperature: -25 ~ 70°C
      • Relative humidity from 5 ~ 95%
      • RS-485 interface (RS-232 optional), support MODBUS-RTU
      UOTEK UT-5528 Digital 8-channel optical isolated dry contact I/O input module

      Hardware definition and initial definition


      • Connector allocation

      The controller is using 10-position terminal blocks as input and output connectors, with the following pin assignments.

      Notes.

      --GND:Common ground

      --VCC:DC9--30V power input operating current:350mA

      --DATA-:Communication interface (RS232, data reception, RS485/RS485-)

      --DATA+: Communication interface (RS232, data reception, RS485/RS485)

      --RESET: reset

      --COM: Switching input common

      --IN1/IN2/IN3/IN4/IN5/IN6/IN7/IN8 Switching inputs

      --NC: empty
